DX

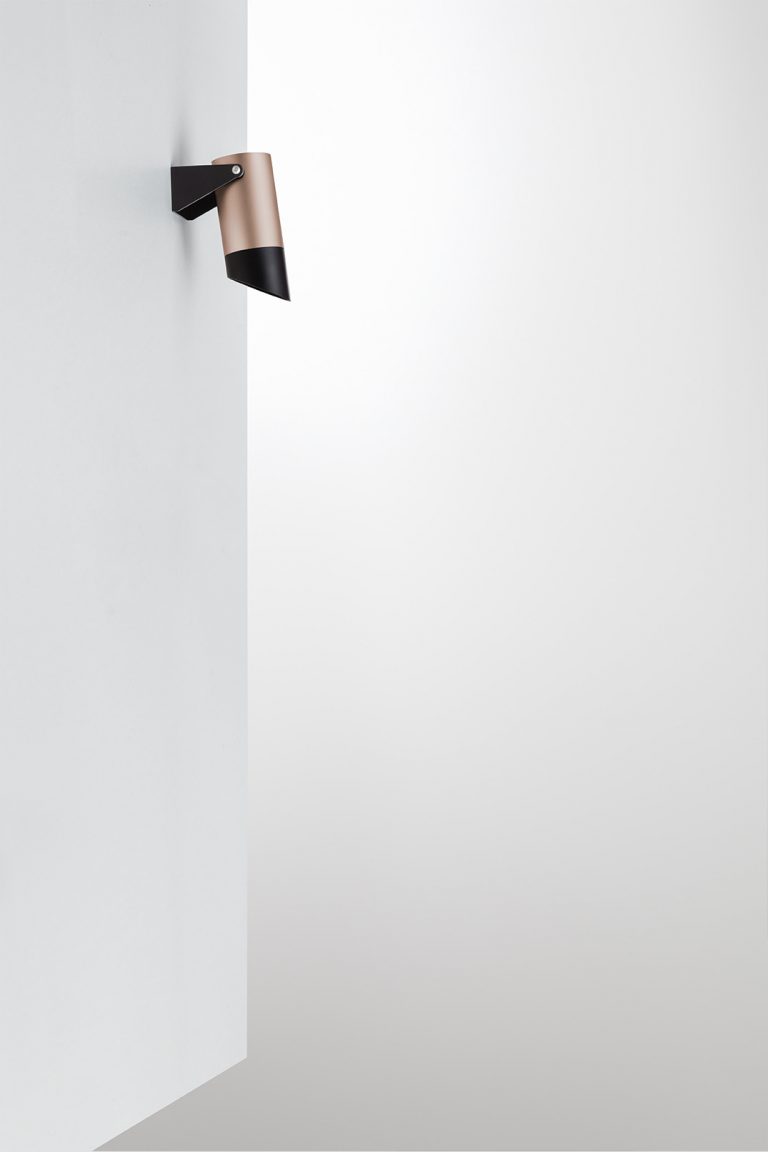

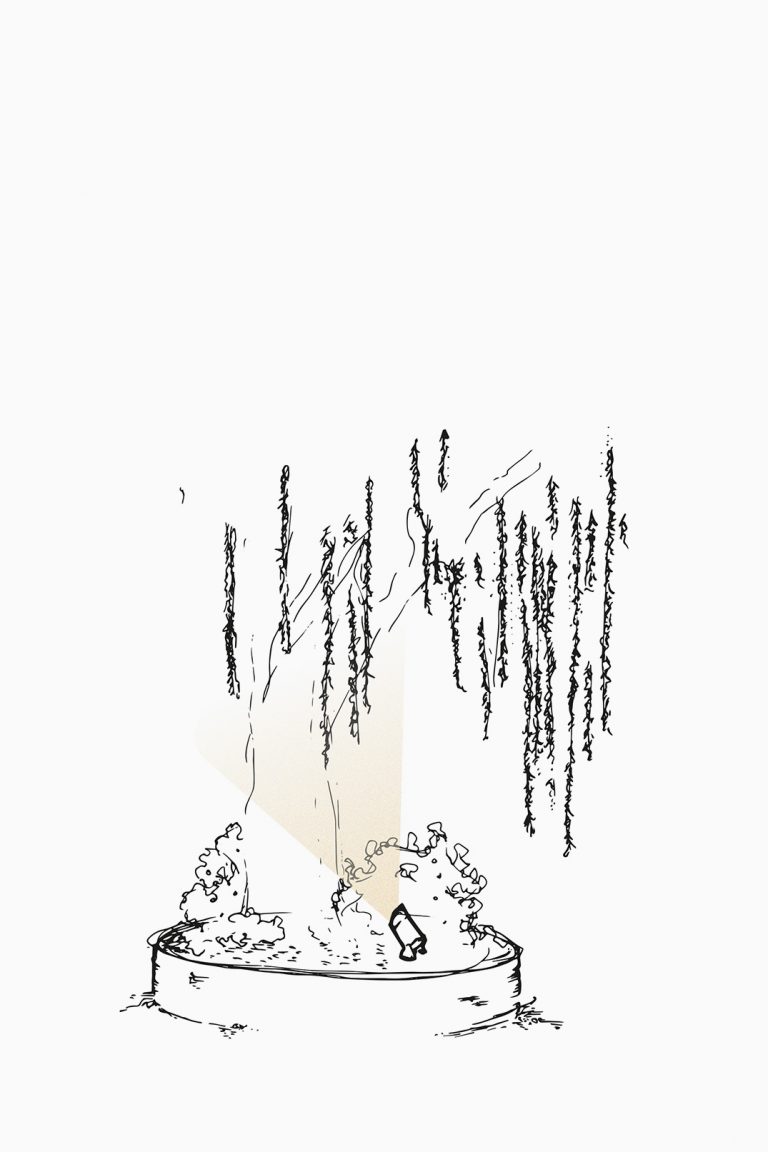

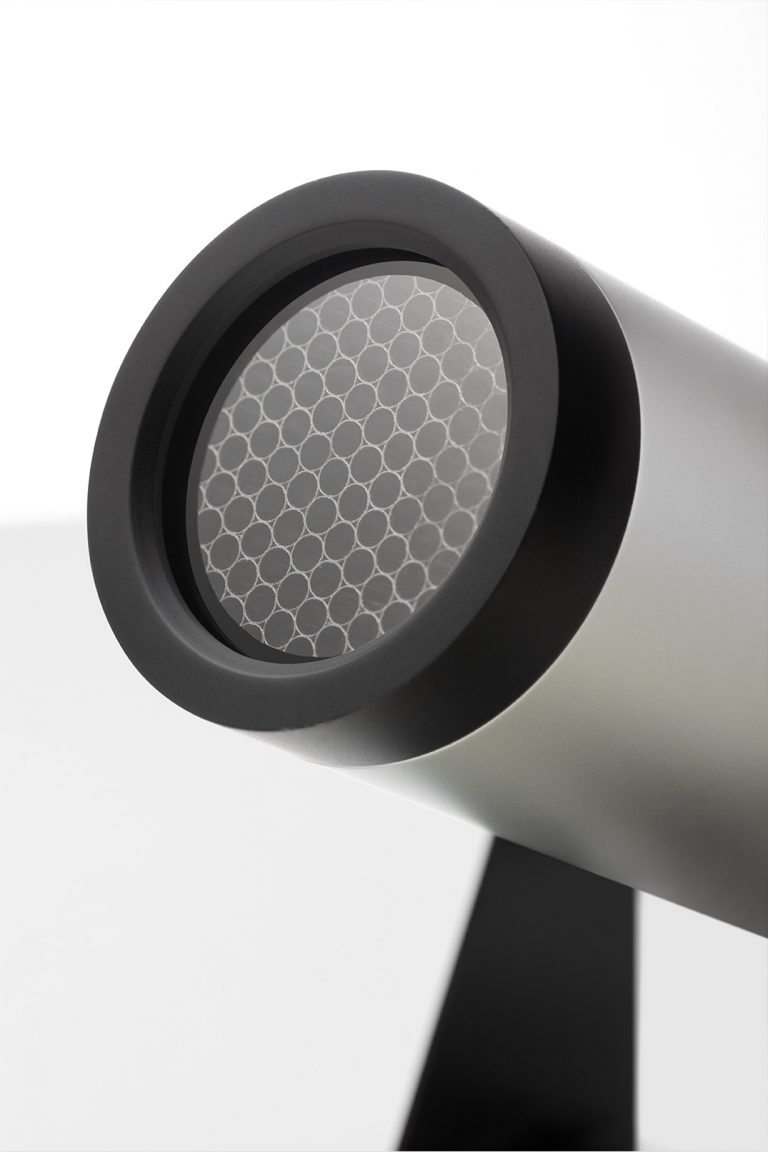

Surface or spike mounted, adjustable spot luminaire in turned, anodized aluminium with tempered glass and aluminium honeycomb lens.
Insulation CLASS III/ I for 220-240V version
2 sizes 60x38mm or 85x54mm. Narrow 15°, Medium 36° beam on small
version/medium 21°, Wide 52° beam on big version

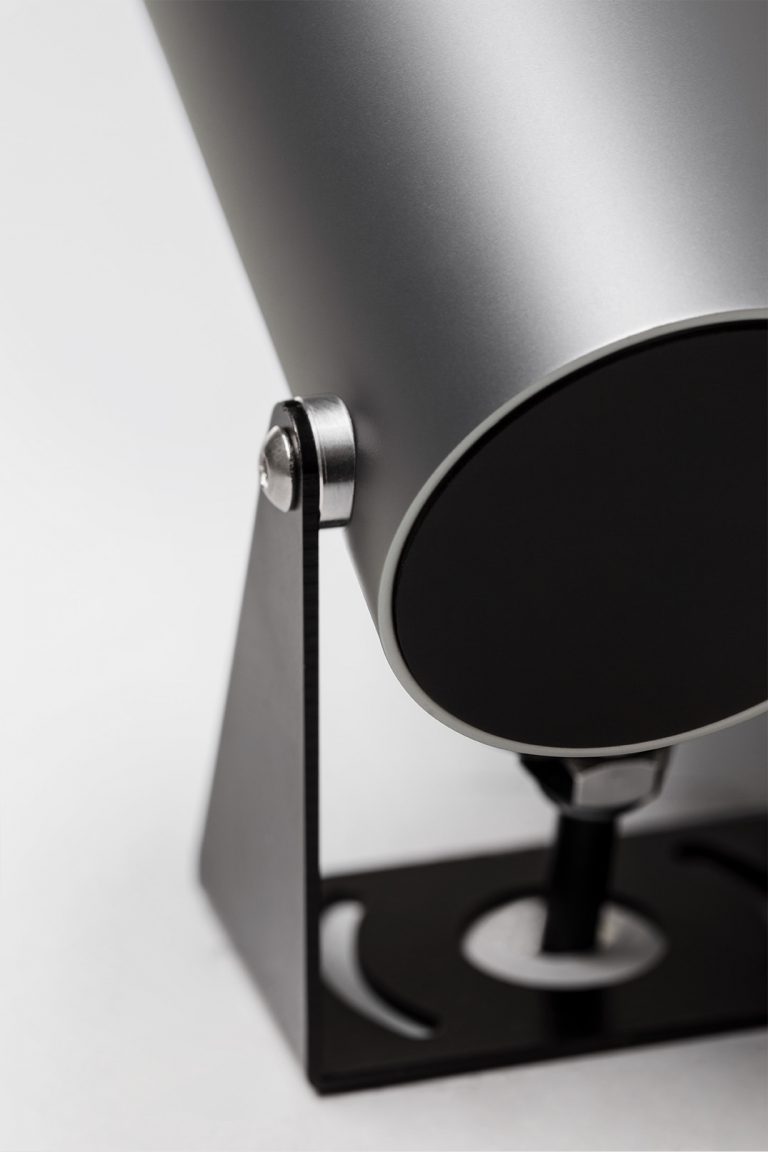

Adjustable +90°/ -10°.
Equipped with power LED (small version) Power LED 4chip (big version) 3000K
Available finishes:
Anodized bronze & Anodized aluminium










DX Ø38 -18º LED 2W 24V (3000k 103lm/4000k 308lm)

Colour temperature

3000K


4000K

Anodized aluminium

900412006


900422006

Anodized Bronze

900412009


900422019

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø38 -36º LED 2W 24V (3000k 781lm/4000k 821lm)

Colour temperature

3000K


4000K

Anodized aluminium

900412016


900422026

Anodized bronze

900412019


900422029

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -26º LED 5,8W 24V (3000k 264lm/4000k 277lm)

Colour temperature

3000K


4000K

Anodized aluminium

900412036


900422036

Anodized bronze

900412039


900422039

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -52º LED 5,8W 24V (3000k 142lm/4000k 149lm)

Colour temperature

3000K


4000K

Anodized aluminium

900412046


900422046

Anodized bronze

900412049


900422049

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -26º LED 6W 240V (3000k 264lm/4000k 277lm)

Colour temperature

3000K


4000K

Anodized aluminium

900412006


900422006

Anodized bronze

900412049


900422049

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -52º LED 6W 240V (3000k 142lm/4000k 149lm)

Colour temperature

3000K


4000K

Anodized aluminium

900412016


900422016

Anodized bronze

900412019


900422019

Downloads

PDF  LDT – IES

BIM  3DS  DWG

Accessories (DX Ø38-DX Ø54)

Tube Frame DX Ø38

  90117

Eyelid Frame DX Ø38

  90127

Tube Frame DX Ø54

  90157

Eyelid Frame DX Ø54

  90167

Downloads

PDF

Remote Drivers (DX Ø38-DX Ø54)

35W 24Vdc IP67

01356735

75W 24Vdc IP67

01246775

100W 24Vdc IP67

012467100
