DX STEM

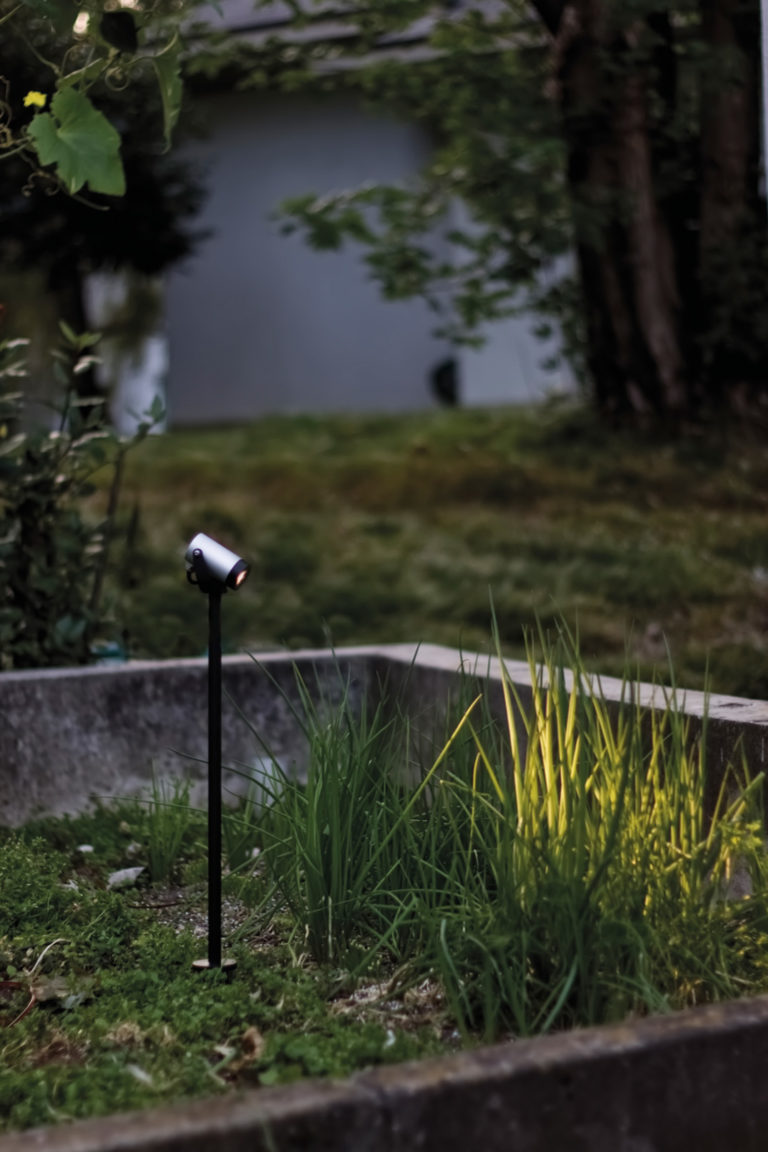

Surface or spike mounted, adjustable spot luminaire in turned, anodized aluminium with tempered glass and aluminium honeycomb lens.
Insulation CLASS III/ I for 220-240V version
2 sizes 60x38mm or 85x54mm. Narrow 15°, Medium 36° beam on small
version/medium 21°, Wide 52° beam on big version
Adjustable +90°/ -10°.
Equipped with power LED (small version) Power LED 4chip (big version) 3000K
Available finishes:
Anodized bronze & Anodized aluminium










Catalogue Pages
Installation Sheet

DX Ø38 -18º H60 LED 2W 24V (3000k 103lm/4000k 108lm)

Colour temperature

3000K

4000K

Anodized aluminium

900412056

900422056

Anodized Bronze

900412059

900422059

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø38 - 18º H160 LED 2W 24V (3000k 103lm/4000k 108lm)

Colour temperature

3000K

4000K

Anodized aluminium

900412066

900422066

Anodized bronze

900412069

900422069

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø38 -18º H500 LED 2W 24V (3000k 103lm/4000k 108lm)

Colour temperature

3000K

4000K

Anodized aluminium

900412076

900422076

Anodized bronze

900412079

900422079

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø38 -36º H60 LED 2W 24V (3000k 77lm/4000k 88lm)

Colour temperature

3000K

4000K

Anodized aluminium

900412086

900422086

Anodized bronze

900412089

900422089

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø38 -36º H160 LED 2W 240V (3000k 72lm/4000k 88lm)

Colour temperature

3000K

4000K

Anodized aluminium

900412096

900422096

Anodized bronze

900412099

900422099

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø38 -36º H500 LED 2W 240V (3000k 72lm/4000k 88lm)

Colour temperature

3000K

4000K

Anodized aluminium

900412106

900422106

Anodized bronze

900412109

900422109

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -26º H70 LED 5.8W 24V (3000k 264lm/4000k 277lm)

Colour temperature

3000K

4000K

Anodized aluminium

900412116

900422116

Anodized bronze

900412119

900422119

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -26º H170 LED 5.8W 24V (3000k 264lm/4000k 277lm)

Colour temperature

3000K

4000K

Anodized aluminium

900412126

900422126

Anodized bronze

900412129

900422129

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -26º H510 LED 5.8W 24V (3000k 264lm/4000k 277lm)

Colour temperature

3000K

4000K

Anodized aluminium

900412136

900422136

Anodized bronze

900412139

900422139

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -52º H70 LED 5.8W 24V (3000k 142lm/4000k 149lm)

Colour temperature

3000K

4000K

Anodized aluminium

900422139

900422146

Anodized bronze

900412149

900422149

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -52º H170 LED 5.8W 24V (3000k 142lm/4000k 149lm)

Colour temperature

3000K

4000K

Anodized aluminium

900412156

900422156

Anodized bronze

900412159

900422159

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -52º H510 LED 5.8W 24V (3000k 142lm/4000k 149lm)

Colour temperature

3000K

4000K

Anodized aluminium

900412166

900422166

Anodized bronze

900412169

900422169

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -26º H70 LED 6W 220-240V (3000k 264lm/4000k 277lm)

Colour temperature

3000K

4000K

Anodized aluminium

900411026

900421026

Anodized bronze

900411029

900421029

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -26º H170 LED 6W 220-240V (3000k 264lm/4000k 277lm)

Colour temperature

3000K

4000K

Anodized aluminium

900411036

900421036

Anodized bronze

900411039

900421039

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -26º H510 LED 6W 220-240V (3000k 264lm/4000k 277lm)

Colour temperature

3000K

4000K

Anodized aluminium

900421039

900421046

Anodized bronze

900411049

900421049

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -52º H70 LED 6W 220-240V (3000k 142lm/4000k 149lm)

Colour temperature

3000K

4000K

Anodized aluminium

900411056

900421056

Anodized bronze

900411059

900421059

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -52º H170 LED 6W 220-240V (3000k 142lm/4000k 149lm)

Colour temperature

3000K

4000K

Anodized aluminium

900411066

900421066

Anodized bronze

900411069

900421069

Downloads

PDF  LDT – IES

BIM  3DS  DWG

DX Ø54 -52º H510 LED 6W 220-240V (3000k 142lm/4000k 149lm)

Colour temperature

3000K

4000K

Anodized aluminium

900411076

900421076

Anodized bronze

900411079

900421079

Downloads

PDF  LDT – IES

BIM  3DS  DWG

Accessories (DX Ø38-DX Ø54)

Tube Frame DX Ø38

  90117

Eyelid Frame DX Ø38

  90127

Tube Frame DX Ø54

  90157

Eyelid Frame DX Ø54

  90167

Downloads

PDF

Remote Drivers (DX Ø38-DX Ø54)

35W 24Vdc IP67

01356735

75W 24Vdc IP67

01246775

100W 24Vdc IP67

012467100
