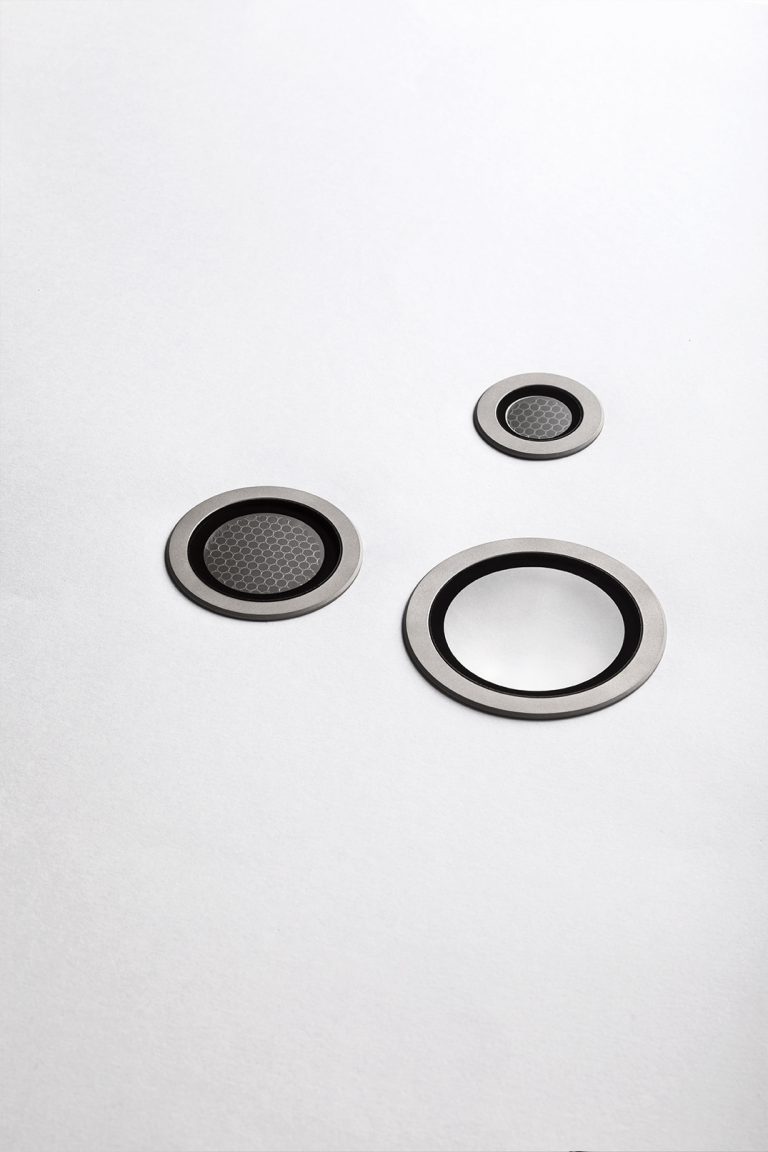

Ground recessed luminaire in three sizes. Anodized aluminium body with tempered, serigraph glass and aluminium honeycomb lens or diffused glass.
IP67.
Insulation CLASS III/ I for direct version.
3 sizes Ø45mm; Ø65mm; Ø85mm.
Emission 36° beam.
Equipped with Power LED 4chip/LED 230V 3000K.
Recessed box for installation to be separately ordered.
Available finishes:
Anodized aluminium









Zero Ø45-36º LED 2W 24Vdc (3000k 103lm/4000k 108lm)

Colour temperature

3000K


4000K

Anodized aluminium

900112036


900122036

Anodized aluminium

900112026 Honeycomb


900122026 Honeycomb

Downloads

PDF  LDT – IES

BIM  3DS  DWG

Zero Ø65-52º LED 6,3W 24Vdc (3000k 142lm/4000k 149lm)

Colour temperature

3000K


4000K

Anodized aluminium

900112076


900122076

Anodized aluminium

900112066 Honeycomb


900122066 Honeycomb

Downloads

PDF  LDT – IES

BIM  3DS  DWG

Zero Ø85 Diffused LED 5,5W 24V (3000k 131lm/4000k 137lm)

Colour temperature

3000K


4000K

Anodized aluminium

900112086


900122086

Anodized aluminium

900111066 Honeycomb


900121006 Honeycomb

Downloads

PDF  LDT – IES

BIM  3DS  DWG

Accessories (Ø45-Ø65-Ø85)

Recessed Box Zero Ø45

  9001

Recessed Box Zero Ø65

  9002

Recessed Box Zero Ø85

  9003

2 Way Terminal Block IP68

  9004

3-4 Way Terminal Block IP68

  9005

Downloads

PDF

Remote Drivers

35W 24Vdc IP67

01356735

75W 24Vdc IP67

01246775

100W 24Vdc IP67

012467100
